รายละเอียดสินค้า
Place of Origin: China
ชื่อแบรนด์: E-link
ได้รับการรับรอง: ISO9001, CE, FCC, RoHS
Model Number: LNK-Convert-Sony
เอกสาร: E-link LNK-Convert-Sony C....0.pdf
เงื่อนไขการชําระเงินและการจัดส่ง
Minimum Order Quantity: 1pcs
ราคา: สามารถต่อรองได้
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
MTBF: |
≥100000 hours |
Working Humidity: |
0~95% |
Working Temperature: |
-20℃～+70℃ |
Dimensions (W x H x D): |
70mm x 55mm x 18.5 mm |
Cable: |
30pin LVDS Cable |
Mass: |
30g |
MTBF: |
≥100000 hours |
Working Humidity: |
0~95% |
Working Temperature: |
-20℃～+70℃ |
Dimensions (W x H x D): |
70mm x 55mm x 18.5 mm |
Cable: |
30pin LVDS Cable |
Mass: |
30g |
Product Advantages
► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);
► SDI Output Automatic reclocking 270Mbit/s - 1.48Gbit/s -3Gbit/s
► Compliance with HDMI1.4B 3D and HDCP1.2 standard
► Support HDMI video resolution up to 1920*1200@ 60Hz
► Board and camera management via RS232/TTL
► Board and camera management via RS485/TTL
► Power supply: 9 to 12 VDC, 6 W (including camera)
► Dimensions (W x L x H):70mm x 55mm x 18.5mm
► Camera output 30pin LVDS Cable
Overview

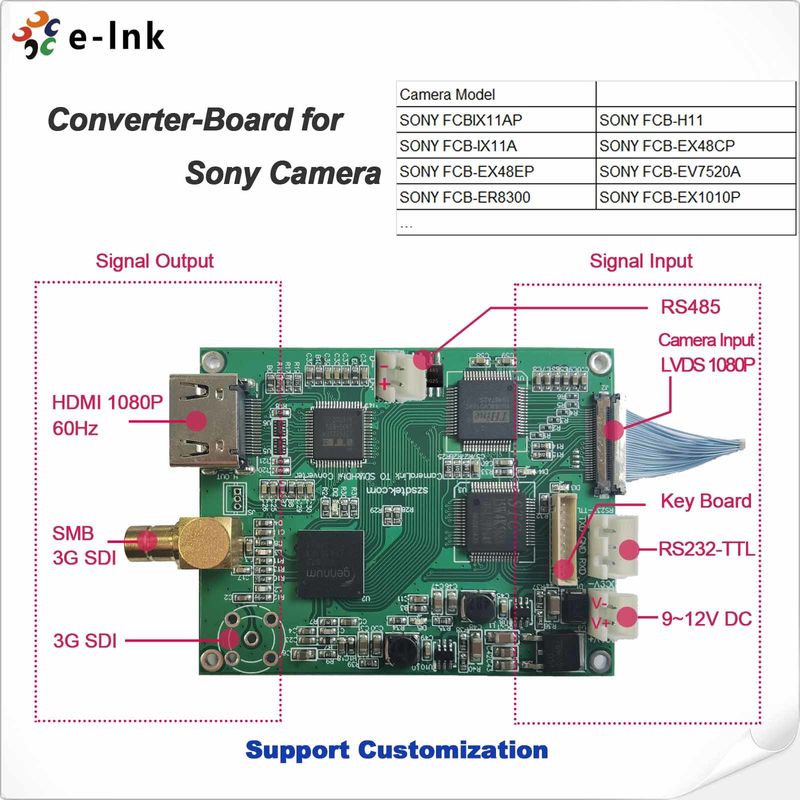

This HDMI Board of SONY HD movement, is a designed for SONY FCB HD integration module research and design, and is compatible with SONY FCB-EH3410 / FCB-EH3310 / FCB-EH3150 / FCB-EH6300 / FCB-EH6500 / FCB-EV7500 / FCB-EV5500 / FCB-EV7100 / FCB-EV7300 / FCB-EV7310 / FCB-EV5300 and so on. This widely used control panels, can be applied to aerial photography, amblyopia, and video conferences, medical devices or other specialized equipment.
Technical Indexes
|
Input Analog |
30pin LVDS Cable |
|
Input Digital |
30pin LVDS Cable |
|
Video output HD |
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) SMPTE425M3Gb/s Mapping(3G-SDI) SMPTE424M 3Gb/s serial interface(3G-SDI) |
|
HDMI Video |
1080P@50/59.95/60Hz,( Max 1920*1200@60Hz) 1080P@23.98/24/29.97/30Hz, |
|
Camera control interface |
RS-232 control |
|
Power Requirements |
9 to 12 V DC |
|
Mass |
30g |
|
Cable |
30pin LVDS Cable |
|
Dimensions (W x H x D) |
70mm x 55mm x 18.5 mm |
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
|
Model |
Description |
|
LNK-Convert-Sony |
Input: 30pin LVDS Cable RS232 TTL, RS485, Keyboard, 9-12V DC input |
