รายละเอียดสินค้า
Place of Origin: China
ชื่อแบรนด์: E-link
ได้รับการรับรอง: CE, FCC, RoHS
Model Number: LNK-SP5VG-USB
เอกสาร: E-link 1000M 5V2A PoE Split....0.pdf
เงื่อนไขการชําระเงินและการจัดส่ง
Minimum Order Quantity: 1pcs
ราคา: สามารถต่อรองได้
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Product Size: |
83 x 28 x 22mm |
Weight: |
59g |
Operating temperature: |
0°C~55°C |
LED Indicator: |
POE input indicator; PD output indicator |
CasingCasingCasingCasingCasing: |
Aluminum Case |
Radiation: |
CE mark,commercial,FCC Part 15 Class B，RoHS |
Product Size: |
83 x 28 x 22mm |
Weight: |
59g |
Operating temperature: |
0°C~55°C |
LED Indicator: |
POE input indicator; PD output indicator |
CasingCasingCasingCasingCasing: |
Aluminum Case |
Radiation: |
CE mark,commercial,FCC Part 15 Class B，RoHS |
Product Advantages
► IP67-rated aluminum case
► 3 x 10/100/1000Mbps Ethernet Ports
► All ports support IEEE 802.3af/at/bt standards
► 48 ~ 57V DC Power Input
► Wall-mountable design
► Wide operating temperature range: -40°C to 80°C
► Plug-and-play functionality
► Supports 2K MAC address table for connecting more
► 10kb jumbo frame support in 1000Mbps full-duplex mode
► 1/2(+), 3/6(-), 4/5 (+), 7/8 (-) Power Pin Assignment
Overview

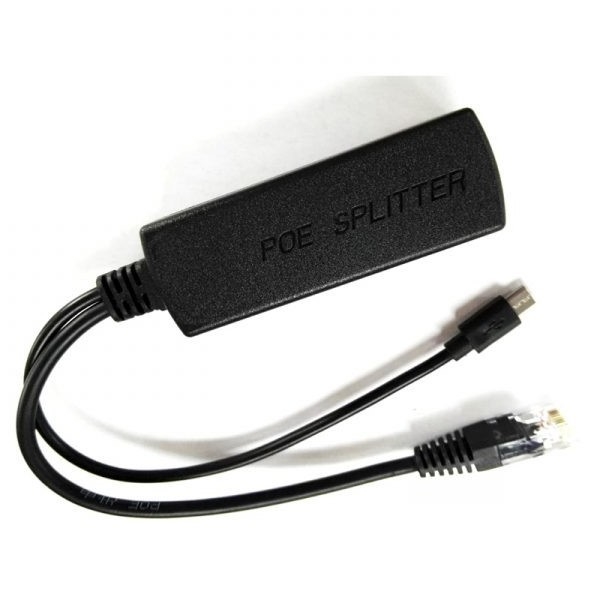

The LNK-SP5VG-USB is designed specially to fill the demand of the micro USB power input products such as iPad, Dropcam, Raspberry Pi ,Android, Tablet etc. It can be transmitted power and data signals through the cable transmission. LNK-SP5VG-USB support the use of PSE equipment which meet IEEE802.3af standard, such as POE Switch series and so on.
Technical Indexes
|
Model |
LNK-SP5VG-USB |
|
Standard |
IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI IEEE 802.3af |
|
Power Pin |
1/2(+), 3/6(-); 4/5(+), 7/8(-) |
|
Power Input |
44-57V DC |
|
Power Output |
5V 2.4A DC |
|
Date Rate |
10/100/1000Mbps |
|
Distance |
10BASE-T: cat 5 UTP(≤100m) 100BASE-TX: cat 5 and above UTP(≤100m) 1000BASE-T: cat 5 and above UTP(≤100m) |
|
LED Indicator |
POE input indicator; PD output indicator |
|
Environmental |
Working Temperature: 0°C~55°C Storage temperature: -20°C~75°C Working Humidity: 10%～90% RH non-condensing Storage Humidity: 5%～90% RH non-condensing |
|
Radiation |
CE mark,commercial,FCC Part 15 Class B,RoHS |
|
Product Size |
83 x 28 x 22mm |
|
Weight |
59g |
Ordering Information
|
Model |
Description |
|
LNK-SP5VG-USB |
10/100/1000M 5V 2.4A POE splitter with Micro USB port |
