รายละเอียดสินค้า
Place of Origin: China
ชื่อแบรนด์: E-link
ได้รับการรับรอง: ROHS,FCC,CE
Model Number: LNK-1240KVM
เงื่อนไขการชําระเงินและการจัดส่ง
Minimum Order Quantity: 1 pcs
ราคา: สามารถต่อรองได้
Packaging Details: Extender Standard Export Package
Delivery Time: 3-12 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability: 1000 pcs/month
Keywords: |
Fiber Extender |
Operating Temperature: |
-32° to +122° F. (-0° to +50° C) |
Dimension (LxWxH): |
89mm x 104 mm x 28.3 mm |
Weight: |
200 g |
Power Consumption: |
3 watts |
The warranty: |
2 year warranty |
Keywords: |
Fiber Extender |
Operating Temperature: |
-32° to +122° F. (-0° to +50° C) |
Dimension (LxWxH): |
89mm x 104 mm x 28.3 mm |
Weight: |
200 g |
Power Consumption: |
3 watts |
The warranty: |
2 year warranty |
► Real Time Transmission, HDCP 1.2 compliant
► Supports DVI 1.0 and HDMI v1.3
► Supports resolutions up to1920*1080/60P
► Supports 1920*1080/60P resolution with color depth up to 24 bits/pixel
► Supports HDMI bit-rates up to 2.25Gbps color, 6.75Gbps total, CEC are NOT supported!
► Support USB Keyboard and USB Mouse
► LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™
► Built-in EQ(Receiver), Plug and Play, Surface-mountable
► Up to 300m distance by OM3-300(Custom Available)
► Low RFI / EMI profile for sensitive applications

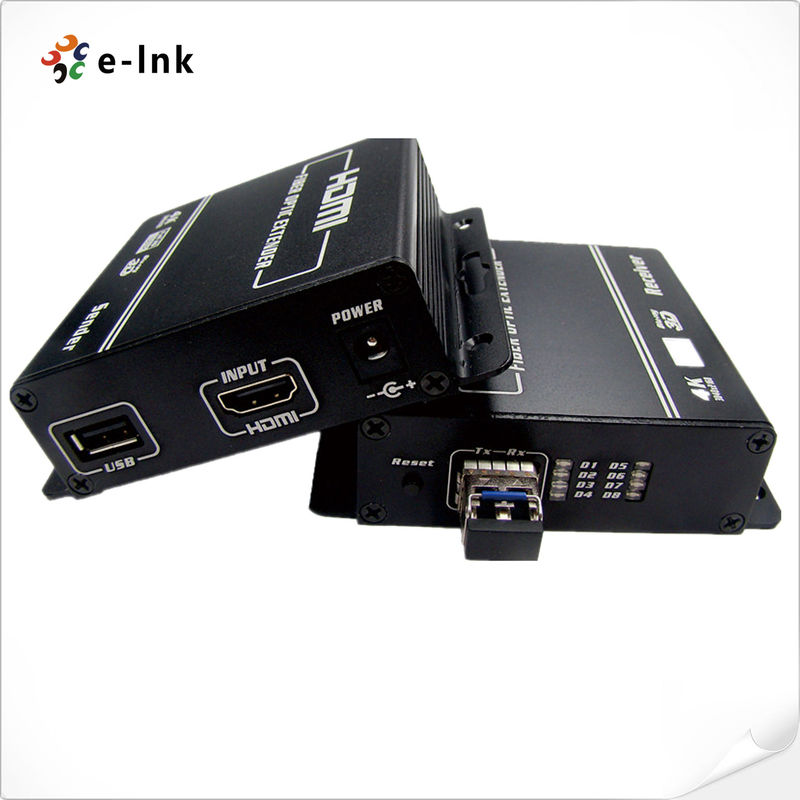

The LNK-1240KVM series is a high performance 1080P HDMI KVM Fiber Optic Extender that transmits high resolution DVI / HDMI signals over extreme distances using 2 cores fiber. This extender supports HDMI v1.3 signals with resolutions up to 1080P (1920x1080/60p) over cable distances up to 300m (Multimode Fiber) or 10km (Single Mode Fiber).
|
Model |
Description |
|
LNK-1240KVM -T |
1080P HDMI KVM Fiber Optic Extender Transmitter |
|
LNK-1240KVM -R |
1080P HDMI KVM Fiber Optic Extender Receiver |
