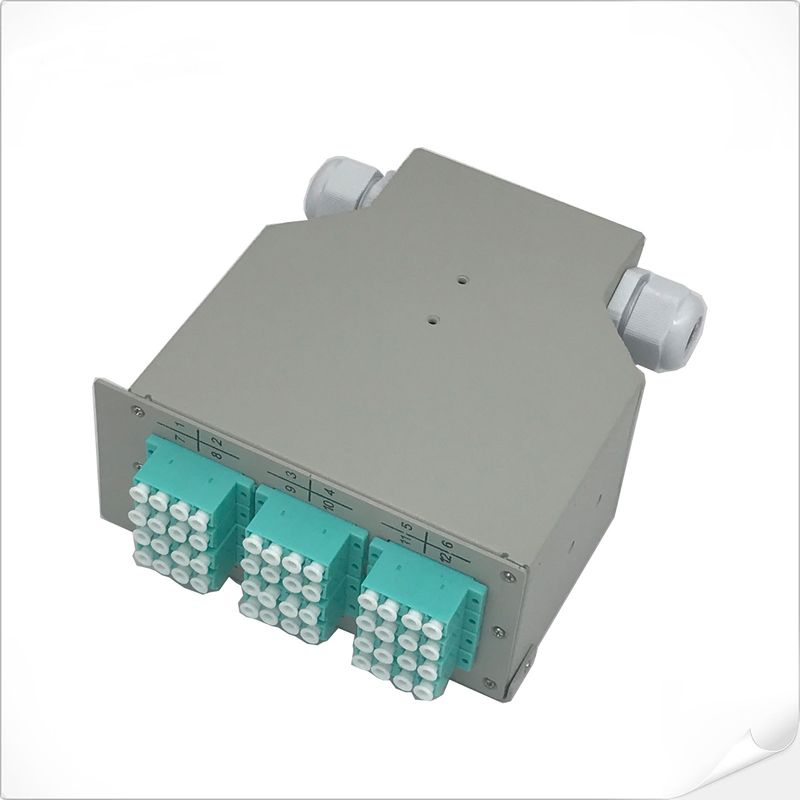

12LC Quad DIN-Rail Patch Panel 48-Port Ultra-High Density IP20

รายละเอียดสินค้า

สถานที่กำเนิด: จีน

ชื่อแบรนด์: E-link

ได้รับการรับรอง: CE

หมายเลขรุ่น: LNK-FSB-Q-12LC

เอกสาร: E-link 12LC Quad DIN-Rail F....0.pdf

เงื่อนไขการชําระเงินและการจัดส่ง

จำนวนสั่งซื้อขั้นต่ำ: 1pc

ราคา: US$20-US$35

รายละเอียดการบรรจุ: แผงแพทช์ไฟเบอร์ราง DIN บรรจุภัณฑ์กล่องมาตรฐาน

เวลาการส่งมอบ: 7-10 วันทำการ

เงื่อนไขการชำระเงิน: L/C, T/T, Western Union, Moneygram, Paypal

สามารถในการผลิต: 1000000pcs/เดือน

หา ราคา ที่ ดี ที่สุด
ติดต่อตอนนี้
รายละเอียด
เน้น:

IP20 Patch Panel

,

12LC Quad Patch Panel

,

Ultra High Density Patch Panel

LC-ควอด:
สูงสุด 12 ชิ้น
พิมพ์:
LC
น้ำหนัก:
0.6kg
ขนาด (กxยxส):
131.50 x 131.70 x 52.60 มม. (5.177 x 5.185 x 2.071 นิ้ว)
ตัวเลือกการติดตั้ง:
ราง DIN
การเข้าถึงสายเคเบิล/ทางออก:
จากด้านบนหรือล่างตรงหรือเอียง
LC-ควอด:
สูงสุด 12 ชิ้น
พิมพ์:
LC
น้ำหนัก:
0.6kg
ขนาด (กxยxส):
131.50 x 131.70 x 52.60 มม. (5.177 x 5.185 x 2.071 นิ้ว)
ตัวเลือกการติดตั้ง:
ราง DIN
การเข้าถึงสายเคเบิล/ทางออก:
จากด้านบนหรือล่างตรงหรือเอียง
คําอธิบาย
12LC Quad DIN-Rail Patch Panel 48-Port Ultra-High Density IP20

12LC Quad DIN-Rail Patch Panel 48-Port Ultra-High Density IP20

Product Overview
The E-link 24-Port Industrial DIN-Rail Fiber Patch Panel delivers ultra-high-density fiber management for both direct termination and fusion splicing applications. Featuring 12 LC Quad adapters (48 fiber ports), this anodized aluminum enclosure provides rugged, lightweight performance in space-constrained industrial and telecom environments. Its compact DIN-rail design optimizes rack space when installed alongside other TS-35 rail mounted equipment.

Key Features & Benefits

✅ Ultra-High Density Connectivity

  • 12 LC Quad adapters (48 fibers total)

  • Supports both direct termination and fusion splicing

  • Tool-less access for efficient maintenance

✅ Industrial-Grade Construction

  • Premium anodized aluminum housing (natural finish)

  • Corrosion-resistant for harsh environments

  • IP20 protection against dust and moisture

✅ Space-Optimized Design

  • DIN-rail mountable (TS-35 standard)

  • 1U equivalent height for rack compatibility

  • Ideal for crowded control panels and enclosures

✅ Professional Applications
✔ Data center interconnects
✔ 5G fronthaul/backhaul networks
✔ FTTH distribution frames
✔ Industrial automation systems

Technical Specifications

  • Adapter Type: LC Quad (12 adapters, 48 ports)

  • Material: Anodized aluminum

  • Mounting: DIN-rail TS-35

  • Operating Temp: -40°C to +80°C

  • Color: Natural aluminum finish

Technical Specifications

1. Ultra-High Density Fiber Management

  • 12 LC Quad adapters (48 fiber ports total) for maximum port density

  • Supports both direct termination and fusion splicing

  • Tool-less adapter access for quick maintenance

2. Industrial-Grade Construction

  • Anodized aluminum housing (RAL 7035 grey)

  • IP20 protection against dust and light moisture

  • DIN-rail mountable (TS-35 standard) for easy integration

3. Optimized Cable Management

  • 2x PG 11 cable glands for secure fiber entry/exit

  • Strain relief design to prevent cable damage

  • Compact footprint (1U equivalent height)

4. Rugged Environmental Performance

  • Extended temperature range: -40°C to +80°C (-40°F to 176°F)

  • Vibration resistant for industrial environments

  • Corrosion-resistant aluminum construction

5. Customization Options

  • Alternative adapter configurations available (FC/SC/ST)

  • Custom labeling for easy identification

  • Optional splice tray integration

 Professional Application Scenarios

1. High-Density Data Center Deployments

  • Hyperscale data center interconnects requiring ultra-high port density

  • Cloud computing infrastructure fiber distribution

  • Core router cross-connects in carrier-neutral facilities

  • SDN (Software Defined Networking) architecture implementations

2. 5G & Telecom Infrastructure

  • 5G fronthaul/midhaul termination for C-RAN architectures

  • Central office fiber distribution frames (FDF)

  • FTTx optical distribution networks (ODN)

  • DWDM system patch and splice points

3. Industrial & Enterprise Networks

  • Industry 4.0 smart factory fiber backbones

  • Railway signaling systems (EN 50155 compliant)

  • Power utility communication networks (IEC 61850-3)

  • Financial trading networks requiring low-latency connectivity

4. Smart City & Critical Infrastructure

  • Metro Ethernet access nodes

  • Intelligent transportation system hubs

  • Emergency communication networks

  • Government secure networks

Technical Advantages:
✔ Unprecedented density: 48 fibers in compact DIN-rail form factor
✔ Carrier-grade reliability: Anodized aluminum construction
✔ Future-proof design: LC Quad compatibility for high-speed networks
✔ Operational flexibility: -40°C to +80°C temperature range

Industry Compliance:

  • Mechanical: IEC 61754-16 (LC connector standard)

  • Environmental: IP20, -40°C to +80°C

  • Safety: UL94 V-0 flame rating

  • EMC: EN 61000-6-2/4 (Industrial immunity/emission)

Installation Features:

  • Tool-less LC Quad adapter access

  • Field-configurable port mapping

  • Hot-swappable adapter options

  • Real-time port identification

Technical Indexes

General

Application

Harsh environment,

Design

Splice distributor

Color

Gray

Dimensions (LxWxH)

131.50 x 131.70 x 52.60 mm (5.177 x 5.185 x 2.071 inch)

Weight

0.6KG

Mounting Options

DIN-Rail

Connections/Interfaces

Cable access/outlet

From top or bottom, straight or inclined

Equipped Adapters

LC-Quad

Max. 12pcs

Mechanical

LCrain relief

PG gland

Materials

Casing

Al (Aluminum)

Ordering Informatio

Model

Description

LNK-FSB-D-12LC

12LC Quad DIN-Rail Fiber Patch Panel: 2-cable entries, 12pcs LC/PC SM Quad adapters

Dimension & Drawing

12LC Quad DIN-Rail Patch Panel 48-Port Ultra-High Density IP20 0
