Features
► 5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
► 2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver in dual modes
► Complies with IEEE 802.3bt PoE Standard
► Up to 4 ports of IEEE 802.3bt/at/af devices powered
► Up to 360-watt PoE budget
► Supports PoE power up to 95 watts for each PoE port
► Supports DIN-Rail installation
► Compact fanless design avoids overheating
► IP40 rugged high-strength metal case
► 48~57V DC redundant power with reverse polarity protection
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview

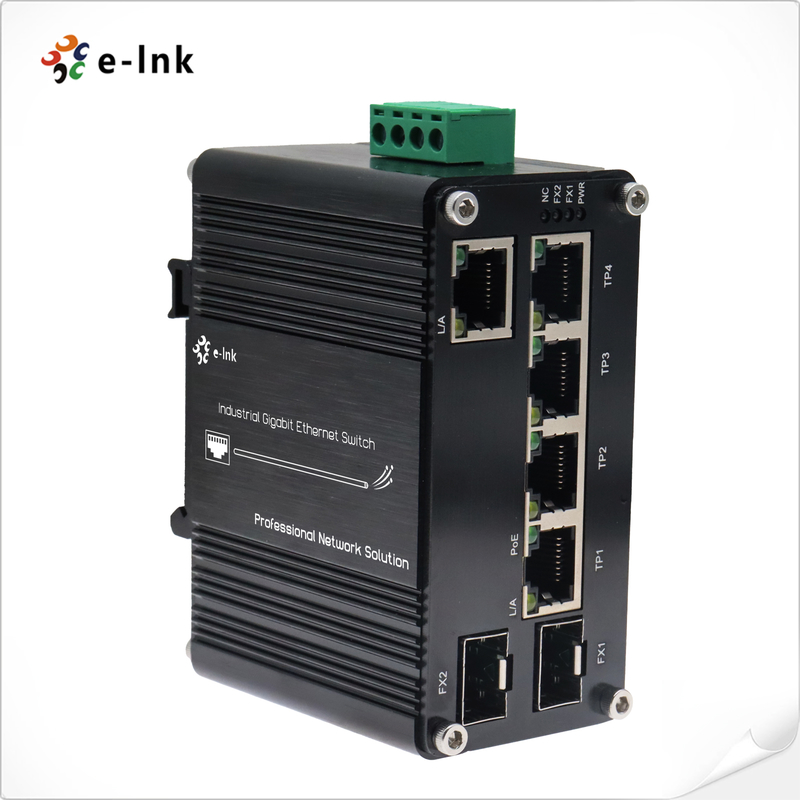

E-link LNK-IMC205GHP-SFP Series is a Mini Industrial High Power 90W 802.3bt PoE Switch with 4*10/100/1000T Ethernet ports that support IEEE802.3at/af/bt for a maximum of 90W/port, 1*10/100/1000T Gigabit Ethernet port, and 2*100/1000 dual rate SFP slots for fiber connection.
LNK-IMC205GHP-SFP adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as: PoE PTZ speed dome cameras, Thin clients, AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks, Remote digital signage displays and PoE lightings.
The LNK-IMC205GHP-SFP is IP40 rated and DIN-rail mountable. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.
Application
Technical Indexes
|
Standards: |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE 802.3bt 4-pair Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus PSE |
|
|
IEEE 802.3af Power over Ethernet Plus |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer: |
2Mbits |
|
Packet Length: |
10Kbytes |
|
MAC Address Table: |
4K |
|
Switch Fabric: |
14Gbps/non-blocking |
|
Exchange Property |
Backplane bandwidth: 14Gbps; Packet forwarding rate: 14.88Mpps |
|
Connector: |
4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
|
Network Cables |
Twisted-pair: 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m 100BASE-TX: 2-pair UTP Cat. 5, up to 100m 1000BASE-T: 4-pair STP Cat 5 up to 100m
Fiber-optic Cable 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km. 1000BASE-LX: 9/125μm single-mode cable, providing long distance of 2/10/20/40/80/120km (depending on SFP module) 100BASE-FX: 50/125μm or 62.5/125μm multi-mode fiber cable for up to 2km (depending on SFP module) 9/125μm single-mode cable for 20/40/60/120km (vary on SFP module) |
|
Interface |
|
|
Connector: |
5 x RJ45 (4-Port 802.3at PoE Out) |
|
Optical Port: |
2 x SFP 1000Base-X or 100Base-FX (auto detection) |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at/bt |
|
Port: |
RJ45 |
|
Power Pin Assignment: |
Pair 1 End-span: 1/2(-), 3/6(+) Pair 2 Mid-span: 4/5(+), 7/8(-) 802.3bt/PoH: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
|
PoE Budget: |
Up to 360-watt PoE budget |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC (Terminal Block) |
|
Power Consumption: |
382W Max. (PoE in use) |
|
<5W (PoE not in use) |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
Dimensions (LxWxH): |
95 x 88 x 46mm |
|
Weight: |
300g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail |
|
LED Indicators: |
|
|
PWR: |
Power |
|
L/A: |
Link/Activity |
|
PoE: |
PoE Status |
|
FX1/FX2: |
SFP Fiber Link Status |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC, RoHS |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55032:2017 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
|
Model |
Description |
|
LNK-IMC205GHP-SFP |
Industrial 4-Port 10/100/1000T 802.3bt 90W PoE + 1-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; |
|
Power Options |
► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately |
